Beam Angles

10° (Native), 20°, 40°, 60°, 80°, 10° x 40°

Lumens All Channels Full On

2,476 to 3,007

Efficacy (lm/W) All Channels Full On

52.7 to 64.0

LED Channels

Red/Green/Blue/Mint White

Applications

Flood Lighting, Spot Lighting, Wall Washing

Warranty

Limited 5 year warranty

Input Voltage

100 to 277 VAC, auto-ranging, 50/60 Hz via Data Enabler Pro

Power Consumption

47 W

Weight

3.9 kg (8.2 lb)

Housing Material

Die-cast aluminium, powder-coated finish

Approbations

UL/cUL, FCC Class A, CE, PSE, CQC, RCM, BIS

Technologies

Chromacore
Chromasync
IntelliHue
Optibin
Powercore

Environment

Dry/Damp/Wet Location, IP66

Luminaire Specification Sheets

In addition to the standard Blast luminaires shown below numerous custom configurations are available. These include single color LEDs, single white CCTs with CRI up to 90, and custom LED mixes, a full range of RAL housing colors (with matching accessories), internal and external diffusers, and custom leader cable lengths. Please contact your Color Kinetics Lighting sales rep.

Showing 1-6 of 6

Specification Sheet	Item Number	12NC	Availability
100 – 277 VAC, 10° Native (no spread lens), White Housing, UL/CE/CQC	423-000026-00	912400137691	Ships within 48 hours in US
100 – 277 VAC, 10° Native (no spread lens), Black Housing, UL/CE/CQC	423-000026-01	912400137692	Ships within 48 hours in US
100 – 277 VAC, 10° Native (no spread lens), Gray Housing, UL/CE/CQC	423-000026-04	912400137693
100 – 277 VAC, 10° Native (no spread lens), White Housing, BIS	423-000026-06	912400137694
100 – 277 VAC, 10° Native (no spread lens), Black Housing, BIS	423-000026-07	912400137695
100 – 277 VAC, 10° Native (no spread lens), Gray Housing, BIS	423-000026-08	912400137696

Luminaire Specification Sheets

In addition to the standard Blast luminaires shown below numerous custom configurations are available. These include single color LEDs, single white CCTs with CRI up to 90, and custom LED mixes, a full range of RAL housing colors (with matching accessories), internal and external diffusers, and custom leader cable lengths. Please contact your Color Kinetics Lighting sales rep.

Showing 1-6 of 6

Specification Sheet	Item Number	Item Number 2	12NC	12NC 2
100 – 277 VAC, 10° x 40° Asymmetric Spread Lens, White Housing, UL/CE/CQC	423-000026-00	120-000185-12	912400137691	912400130348
100 – 277 VAC, 10° x 40° Asymmetric Spread Lens, Black Housing, UL/CE/CQC	423-000026-01	120-000185-12	912400137692	912400130348
100 – 277 VAC, 10° x 40° Asymmetric Spread Lens, Gray Housing, UL/CE/CQC	423-000026-04	120-000185-12	912400137693	912400130348
100 – 277 VAC, 10° x 40° Asymmetric Spread Lens, White Housing, BIS	423-000026-06	120-000185-12	912400137694	912400130348
100 – 277 VAC, 10° x 40° Asymmetric Spread Lens, Black Housing, BIS	423-000026-07	120-000185-12	912400137695	912400130348
100 – 277 VAC, 10° x 40° Asymmetric Spread Lens, Gray Housing, BIS	423-000026-08	120-000185-12	912400137696	912400130348

Luminaire Specification Sheets

In addition to the standard Blast luminaires shown below numerous custom configurations are available. These include single color LEDs, single white CCTs with CRI up to 90, and custom LED mixes, a full range of RAL housing colors (with matching accessories), internal and external diffusers, and custom leader cable lengths. Please contact your Color Kinetics Lighting sales rep.

Showing 1-6 of 6

Specification Sheet	Item Number	Item Number 2	12NC	12NC 2
100 – 277 VAC, 20° Spread Lens, White Housing, UL/CE/CQC	423-000026-00	120-000185-08	912400137691	912400130344
100 – 277 VAC, 20° Spread Lens, Black Housing, UL/CE/CQC	423-000026-01	120-000185-08	912400137692	912400130344
100 – 277 VAC, 20° Spread Lens, Gray Housing, UL/CE/CQC	423-000026-04	120-000185-08	912400137693	912400130344
100 – 277 VAC, 20° Spread Lens, White Housing, BIS	423-000026-06	120-000185-08	912400137694	912400130344
100 – 277 VAC, 20° Spread Lens, Black Housing, BIS	423-000026-07	120-000185-08	912400137695	912400130344
100 – 277 VAC, 20° Spread Lens, Gray Housing, BIS	423-000026-08	120-000185-08	912400137696	912400130344

Luminaire Specification Sheets

In addition to the standard Blast luminaires shown below numerous custom configurations are available. These include single color LEDs, single white CCTs with CRI up to 90, and custom LED mixes, a full range of RAL housing colors (with matching accessories), internal and external diffusers, and custom leader cable lengths. Please contact your Color Kinetics Lighting sales rep.

Showing 1-6 of 6

Specification Sheet	Item Number	Item Number 2	12NC	12NC 2
100 – 277 VAC, 40° Spread Lens, White Housing, UL/CE/CQC	423-000026-00	120-000185-09	912400137691	912400130345
100 – 277 VAC, 40° Spread Lens, Black Housing, UL/CE/CQC	423-000026-01	120-000185-09	912400137692	912400130345
100 – 277 VAC, 40° Spread Lens, Gray Housing, UL/CE/CQC	423-000026-04	120-000185-09	912400137693	912400130345
100 – 277 VAC, 40° Spread Lens, White Housing, BIS	423-000026-06	120-000185-09	912400137694	912400130345
100 – 277 VAC, 40° Spread Lens, Black Housing, BIS	423-000026-07	120-000185-09	912400137695	912400130345
100 – 277 VAC, 40° Spread Lens, Gray Housing, BIS	423-000026-08	120-000185-09	912400137696	912400130345

Luminaire Specification Sheets

In addition to the standard Blast luminaires shown below numerous custom configurations are available. These include single color LEDs, single white CCTs with CRI up to 90, and custom LED mixes, a full range of RAL housing colors (with matching accessories), internal and external diffusers, and custom leader cable lengths. Please contact your Color Kinetics Lighting sales rep.

Showing 1-6 of 6

Specification Sheet	Item Number	Item Number 2	12NC	12NC 2
100 – 277 VAC, 60° Spread Lens, White Housing, UL/CE/CQC	423-000026-00	120-000185-10	912400137691	912400130346
100 – 277 VAC, 60° Spread Lens, Black Housing, UL/CE/CQC	423-000026-01	120-000185-10	912400137692	912400130346
100 – 277 VAC, 60° Spread Lens, Gray Housing, UL/CE/CQC	423-000026-04	120-000185-10	912400137693	912400130346
100 – 277 VAC, 60° Spread Lens, White Housing, BIS	423-000026-06	120-000185-10	912400137694	912400130346
100 – 277 VAC, 60° Spread Lens, Black Housing, BIS	423-000026-07	120-000185-10	912400137695	912400130346
100 – 277 VAC, 60° Spread Lens, Gray Housing, BIS	423-000026-08	120-000185-10	912400137696	912400130346

Luminaire Specification Sheets

In addition to the standard Blast luminaires shown below numerous custom configurations are available. These include single color LEDs, single white CCTs with CRI up to 90, and custom LED mixes, a full range of RAL housing colors (with matching accessories), internal and external diffusers, and custom leader cable lengths. Please contact your Color Kinetics Lighting sales rep.

Showing 1-6 of 6

Specification Sheet	Item Number	Item Number 2	12NC	12NC 2
100 – 277 VAC, 80° Spread Lens, White Housing, UL/CE/CQC	423-000026-00	120-000185-11	912400137691	912400130347
100 – 277 VAC, 80° Spread Lens, Black Housing, UL/CE/CQC	423-000026-01	120-000185-11	912400137692	912400130347
100 – 277 VAC, 80° Spread Lens, Gray Housing, UL/CE/CQC	423-000026-04	120-000185-11	912400137693	912400130347
100 – 277 VAC, 80° Spread Lens, White Housing, BIS	423-000026-06	120-000185-11	912400137694	912400130347
100 – 277 VAC, 80° Spread Lens, Black Housing, BIS	423-000026-07	120-000185-11	912400137695	912400130347
100 – 277 VAC, 80° Spread Lens, Gray Housing, BIS	423-000026-08	120-000185-11	912400137696	912400130347

* Trim Ring required for mounting spread lens. Must be ordered separately.

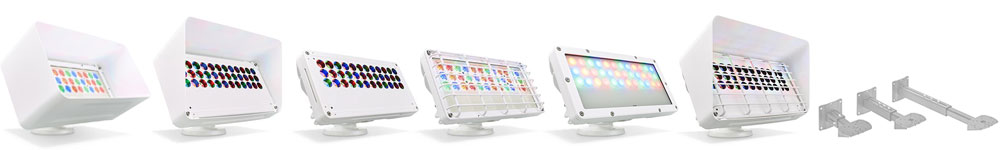

Easy Accessory options

Choose from a full line of field-installed accessories, from spread lenses, louvers, full and half glare shields, rock guards, mounting arms, and wiring compartments for all Blast luminaires. Color Kinetics high-quality accessories make project customization simple. And these optional secondary accessories—combined with precise (and simple) aiming—let you get the look and performance necessary for any project.
Blast-accessories

Accessory Specification Sheets

Showing 1-8 of 8

PDF Download	Item Number	12NC	Availability
Data Enabler Pro, 3/4 in / 1/2 in NPT (US trade size conduit), UL	106-000004-00	910503701210	Ships within 48 hours in US
Data Enabler Pro, PG21/PG13 (metric size conduit), 100-277 VAC	106-000004-01	910503701211
Wiring Compartment, 4 in Diameter, Black Housing (CE)	106-000011-40	910503703275
Wiring Compartment, 4 in Diameter, Silver/Gray Housing (CE)	106-000011-42	910503703277
Wiring Compartment, 4 in Diameter, White Housing (CE)	106-000011-41	910503703276
Wiring Compartment, 4 in Diameter, Black Housing (UL/cUL)	106-000011-30	910503704147
Wiring Compartment, 4 in Diameter, Silver/Gray Housing (UL/cUL)	106-000011-32	910503704149
Wiring Compartment, 4 in Diameter, White Housing (UL/cUL)	106-000011-31	910503704148

PDF Download	Item Number	12NC	Availability
Architectural Mounting Arm, for use with Blast, Graze, Graze Compact, Burst Architectural, and Vaya Flood. Long, gray	120-000206-02	912400136644
Architectural Mounting Arm, for use with Blast, Graze, Graze Compact, Burst Architectural, and Vaya Flood. Medium, gray	120-000206-01	912400136643
Architectural Mounting Arm, for use with Blast, Graze, Graze Compact, Burst Architectural, and Vaya Flood. Short, gray	120-000206-00	912400136642
Blast gen4/gen5 Full Glare Shield, Black Finish	120-000185-03	912400130339
Blast gen4/gen5 Full Glare Shield, Gray Finish	120-000185-16	912400133531
Blast gen4/gen5 Full Glare Shield, White Finish	120-000185-02	912400130338
Blast gen4/gen5 Half Glare Shield, Black Finish	120-000185-14	912400130350
Blast gen4/gen5 Half Glare Shield, Gray Finish	120-000185-19	912400133534
Blast gen4/gen5 Half Glare Shield, White Finish	120-000185-13	912400130349
Blast gen4/gen5 Louver, Black Finish	120-000185-05	912400130341
Blast gen4/gen5 Louver, Gray Finish	120-000185-17	912400133532
Blast gen4/gen5 Louver, White Finish	120-000185-04	912400130340
Blast gen4/gen5 Rock Guard, Black Finish	120-000185-07	912400130343
Blast gen4/gen5 Rock Guard, Gray Finish	120-000185-18	912400133533
Blast gen4/gen5 Rock Guard, White Finish	120-000185-06	912400130342
Blast gen4/gen5 Spread Lens, 10° x 40°	120-000185-12	912400130348
Blast gen4/gen5 Spread Lens, 20°	120-000185-08	912400130344	Ships within 48 hours in US
Blast gen4/gen5 Spread Lens, 40°	120-000185-09	912400130345	Ships within 48 hours in US
Blast gen4/gen5 Spread Lens, 60°	120-000185-10	912400130346	Ships within 48 hours in US
Blast gen4/gen5 Spread Lens, 80°	120-000185-11	912400130347	Ships within 48 hours in US
Blast gen4/gen5 Trim Ring, Black	120-000185-01	912400130337	Ships within 48 hours in US
Blast gen4/gen5 Trim Ring, Gray	120-000185-15	912400133530
Blast gen4/gen5 Trim Ring, White	120-000185-00	912400130336	Ships within 48 hours in US

Special orders, including custom accessory colors are available. Please contact your Color Kinetics lighting sales rep. for custom configurations.

Downloads

Documentation
Product Guide	Product Summary	• Blast Powercore Accessories, Installation Instructions • ColorBlast Powercore gen4/gen5 Installation Instructions • Mounting Arm Accessory Installation Instructions	QuickPlay Pro 2 Commissioning Guide	• Color Kinetics Installation Checklist • Config Calc - Run length and power calculation tool • IP ratings for LED Lighting Systems • LED mix descriptions • Thermal protection and Color Kinetics luminaires • Understanding Corrosion Resistance • Understanding Surge Protection For LED Lighting Systems

Showing 1-6 of 6

IES Files	Full On	2700 K	4000 K
Blast Powercore gen5, IntelliHue 10° Native (no spread lens)	10° Native (no spread lens), all channels full on	2700 K, 10° Native (no spread lens)	4000 K, 10° Native (no spread lens)
Blast Powercore gen5, IntelliHue 10° x 40° Asymmetric Spread Lens	10° x 40° asymmetric spread lens, all channels on	2700 K, 10° x 40° Native (no spread lens)	4000 K, 10° x 40° Native (no spread lens)
Blast Powercore gen5, IntelliHue 20° Spread Lens	20° spread lens, all channels on	2700 K, 20° Native (no spread lens)	4000 K, 20° Native (no spread lens)
Blast Powercore gen5, IntelliHue 40° Spread Lens	40° spread lens, all channels on	2700 K, 40° Native (no spread lens)	4000 K, 40° Native (no spread lens)
Blast Powercore gen5, IntelliHue 60° Spread Lens	60° spread lens, all channels on	2700 K, 60° Native (no spread lens)	4000 K, 60° Native (no spread lens)
Blast Powercore gen5, IntelliHue 80° Spread Lens	80° spread lens, all channels on	2700 K, 80° Native (no spread lens)	4000 K, 80° Native (no spread lens)

Wiring Diagrams	PDF
Blast Powercore : Data Enabler Pro : Antumbra iColor Keypad	PDF
Blast Powercore : Data Enabler Pro : ColorDial Pro	PDF
Blast Powercore : Data Enabler Pro : iPlayer 3	PDF
Blast Powercore : Data Enabler Pro : iPlayer 4	PDF

Revit Files
Blast Powercore gen5, IntelliHue Revit File

Drawings	PDF
Blast gen4/gen5 Luminaire and Accessories - Full Set	PDF

Showing 1-28 of 28

Drawings	PDF	DXF	DWG
Blast gen4/gen5 Luminaire - Individual		DXF
Blast gen4/gen5 Luminaire with Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Half Glare Shield		DXF
Blast gen4/gen5 Luminaire with Louver		DXF
Blast gen4/gen5 Luminaire with Louver and Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Louver and Half Glare Shield		DXF
Blast gen4/gen5 Luminaire with Louver and Rock Guard		DXF
Blast gen4/gen5 Luminaire with Louver, Rock Guard and Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Louver, Rock Guard and Half Glare Shield		DXF
Blast gen4/gen5 Luminaire with Rock Guard		DXF
Blast gen4/gen5 Luminaire with Rock Guard and Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Rock Guard and Half Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens and Trim Ring		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring and Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring and Half Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring and Louver		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring and Rock Guard		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring, Louver and Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring, Louver and Half Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring, Louver and Rock Guard		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring, Louver, Rock Guard and Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring, Louver, Rock Guard and Half Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring, Rock Guard and Full Glare Shield		DXF
Blast gen4/gen5 Luminaire with Spread Lens, Trim Ring, Rock Guard and Half Glare Shield		DXF
Blast Powercore gen4/gen5 Luminaire			DWG
Mounting Arm, Long Length	PDF
Mounting Arm, Medium Length	PDF
Mounting Arm, Short Length	PDF
