Knack Table

Showing 1-1 of 1

Download Product Summary

Viewing Angles

105°, 210°

Lumens per foot

248 to 287

LED Channels

Red/Green/Blue/4000 K

Applications

Direct View

Warranty

Limited 5 year warranty

Input Voltage

48 VDC via PDS-400 48V EO or CM-400 48V EO

Housing Material

Extruded aluminium and polycarbonate

Approbations

UL/cUL, FCC Class A, CE, CQC, RCM

Technologies

Chromacore

Environment

Dry/Damp/Wet Location, IP66

Luminaire Specification Sheets

In addition to the standard Accent Compact luminaires shown below numerous custom configurations are available. These include 4 housing lengths in a full range of RAL colors, clear or transparent lenses, and custom LED mixes. Please contact your Color Kinetics Lighting sales rep. for more information.

Showing 1-6 of 6

Specification Sheet	Item Number	12NC
RGBW, 315 mm (12.4 in), Translucent Lens	101-000200-06	912400136255
RGBW, 467 mm (18.4 in), Translucent Lens	101-000200-07	912400136256
RGBW, 1228.5 mm (48.4 in), Translucent Lens	101-000200-09	912400136258
RGBW, 315 mm (12.4 in), Clear Lens	101-000200-10	912400136259
RGBW, 467 mm (18.4 in), Clear Lens	101-000200-11	912400136260
RGBW, 1228.5 mm (48.4 in), Clear Lens	101-000200-13	912400136262

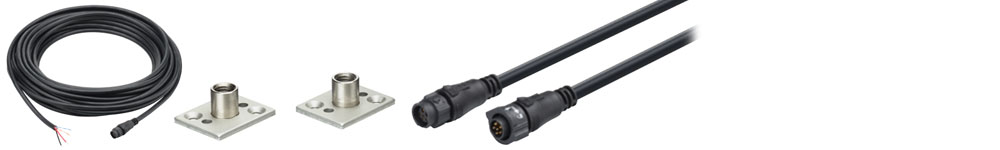

Accessories

See the Color Kinetics Product Guide for more information about Power Data Supplies.

Showing 1-5 of 5

PDF Download	Item Number	12NC
PS-600 48V	109-000220-00	912400133803
PS-480 48V	109-000220-01	912400133804
PDS-400 48 V EO, Ethernet, UL	109-000200-00	912400133799
PDS-400 48 V EO, Ethernet, CE	109-000200-01	912400134110
CM-400 48 V EO, Enhanced for Philips ActiveSite	109-000210-01	912400133802

PDF Download	Item Number	12NC
Accent Compact Leader Cable, 15 m (50 ft), Black	108-000200-00	912400133789
Accent Compact Leader Cable, 30 m (100 ft), Black	108-000200-01	912400133790
Accent Compact Jumper Cable, 1.5 m (5 ft), Black	108-000200-02	912400133791
Accent Compact Jumper Cable, 305 mm (1 ft), Black	108-000200-03	912400134184

Downloads

Showing 1-1 of 1

Documentation
Product Guide	Product Summary	• Accent Compact RGBW Installation Instructions	QuickPlay Pro 2 Commissioning Guide	• Color Kinetics Installation Checklist • IP ratings for LED Lighting Systems • LED mix descriptions • Understanding Corrosion Resistance • Understanding Surge Protection For LED Lighting Systems • Video Guidelines for Direct-View Luminaires

Showing 1-2 of 2

IES Files	Full On
Accent Compact, RGBW, 315 mm (12.4 in), Clear Lens	Clear Lens, 315 mm (12.4 in)
Accent Compact, RGBW, 315 mm (12.4 in), Translucent Lens	Translucent Lens, 315 mm (12.4 in)

Showing 1-1 of 1

Revit Files
Accent Compact, RGBW Revit File

Showing 1-18 of 18

Drawings	PDF	DXF	DWG
Accent Compact RGBW Dome Lens	PDF
Accent Compact RGBW Dome Lens, 1+1.5 ft Front Mounting		DXF	DWG
Accent Compact RGBW Dome Lens, 1+1.5 ft Rear Mounting		DXF	DWG
Accent Compact RGBW Dome Lens, 2+4 ft Front Mounting		DXF	DWG
Accent Compact RGBW Dome Lens, 2+4 ft Rear Mounting		DXF	DWG
Accent Compact RGBW Dome Lens, End-to-End Front Mounting		DXF	DWG
Accent Compact RGBW Dome Lens, End-to-End Rear Mounting		DXF	DWG
Accent Compact RGBW Dome Lens, ISO Front Mounting		DXF	DWG
Accent Compact RGBW Dome Lens, ISO Rear Mounting		DXF	DWG
Accent Compact RGBW Flat Lens	PDF
Accent Compact RGBW Flat Lens, 1+1.5 ft Front Mounting		DXF	DWG
Accent Compact RGBW Flat Lens, 1+1.5 ft Rear Mounting		DXF	DWG
Accent Compact RGBW Flat Lens, 2+4 ft Front Mounting		DXF	DWG
Accent Compact RGBW Flat Lens, 2+4 ft Rear Mounting		DXF	DWG
Accent Compact RGBW Flat Lens, End-to-End Front Mounting		DXF	DWG
Accent Compact RGBW Flat Lens, End-to-End Rear Mounting		DXF	DWG
Accent Compact RGBW Flat Lens, ISO Front Mounting			DWG
Accent Compact RGBW Flat Lens, ISO Rear Mounting		DXF	DWG
